Real-Time Intrusion Detection
and Web Application Firewall
DAG NGWAF IDS monitors every HTTP request at the kernel level — before your application ever sees it. Attacks are detected, logged, and silently dropped in milliseconds. No agents. No cloud dependency. No false-positive bans on your own infrastructure.
Get in touch →Core Capabilities
Kernel-Level Blocking
Banned IPs are added to an ipset blocklist enforced by iptables. Active TCP sessions are killed immediately via conntrack. The web server process never wakes up for blocked traffic.
XDP Fast-Path (eBPF)
An optional Aya/eBPF kernel program pins the blocklist into a BPF hash map at /sys/fs/bpf/xdp_blocklist. Packets from banned IPs are dropped at the NIC driver layer — before the kernel IP stack processes them.
CNN-GRU ML Scoring
An optional Python inference service scores requests via Unix socket using a trained Keras model. 100-dimensional feature extraction (20 structural + 80-char histogram). Fail-open by design — a dead socket scores 0.0, never causing a ban.
TensorFlow 2.15 · fail-openVerified Bot Allowance
Legitimate crawlers (Googlebot, Bingbot) are verified by Forward-Confirmed Reverse DNS before being allowed. PTR lookup → hostname pattern check → forward A confirmation. Unverified crawlers are treated as hostile.
FCrDNS · PTR + A lookupAttack Tool Detection
Known scanner and exploitation tool User-Agents (sqlmap, nikto, masscan, nuclei, Metasploit, Burp Suite, dirbuster, ffuf, and 20+ others) are flagged before any other check — catches scanners even on structurally trivial paths like GET /.
Burst & Shadow Detection
A 2-second sliding window catches volumetric bursts (≥10 req + ≥5 unique paths, or ≥6 req + ≥3 repeated method+path). Shadow tracking accumulates sub-threshold ML hits — three dead-zone scores within 10 minutes trigger a full ban without crossing the block threshold alone.
2s window · shadow 3-hit ruleCampaign Correlation
Attacks are correlated into campaigns using a deterministic SHA-256 hash of reason family, URI prefix, and /24 subnet. Related events across time and instances are grouped automatically — enabling coordinated campaign tracking without a separate SIEM.
SHA-256 correlation · NDJSONSubnet Escalation
When 5 or more distinct IPs from the same /24 subnet are banned within one hour, the entire subnet is added to a separate bad_subnets ipset — automatically blocking coordinated distributed attacks before each individual IP can probe your server.
Tiered Trust Model
Three trust tiers: Hard (operator IPs — fully bypass detection, hot-reloaded via JSON), Soft (Cloudflare, Google, Bing CIDRs — logged but never banned), and None (everything else). Localhost and RFC1918 ranges are hard-protected in the binary itself.
Hard · Soft · None · hot-reloadSOC Dashboard
Built-in PHP SOC interface provides live event streaming, ML score visualization, shadow hit tracking, ground-truth labeling for model retraining, and automated daily reports with ATT&CK technique mapping, ASN intelligence, and enforcement evidence export.
Live · ATT&CK · JSON export7-Stage Enforcement State Machine
IPs progress through Observe → ScoreAmplify → RateLimit → Challenge → TempBan → XdpDrop → SubnetEscalate. Stages 0–2 are informational. Stages 3–6 enforce. IPs automatically cool down to Observe after 1 hour of inactivity.
Graduated · 1h cooldownGeoIP & ASN Enrichment
Every event is enriched offline with MaxMind GeoLite2 ASN and country data — no external API call, no latency added. Absent databases fail gracefully; enrichment is never on the enforcement path. ASN hostile-density tracking surfaces coordinated campaigns by network.
MaxMind GeoLite2 · fail-openTechnology Stack
Live Detection Stream
2026-05-13T18:15:17Z DETECT ip=185.220.101.47 stage=BLKLST reason=blocklist_regex path="/etc/passwd" score=0.00 action=BAN 2026-05-13T18:15:21Z DETECT ip=45.33.32.156 stage=ADM_PRB reason=admin_probe path="/phpmyadmin/index.php" score=0.00 action=LOG 2026-05-13T18:15:25Z DETECT ip=91.108.4.200 stage=ML_SCORE reason=ml_suspicious path="/wp-login.php?a=b" score=0.94 action=BAN 2026-05-13T18:15:28Z ALLOW ip=66.249.66.1 stage=BOT_VRF reason=verified_googlebot path="/sitemap.xml" score=0.00 action=PASS 2026-05-13T18:15:31Z DETECT ip=193.32.161.8 stage=BAD_UA reason=bad_user_agent ua="sqlmap/1.7" score=0.00 action=BAN 2026-05-13T18:15:34Z DETECT ip=198.199.88.12 stage=ML_SCORE reason=ml_shadow_threshold path="/api/v1/users" score=0.71 action=BAN 2026-05-13T18:15:38Z BURST ip=103.167.112.33 stage=BURST reason=burst_diversity req=12 paths=8 window=2s action=BAN

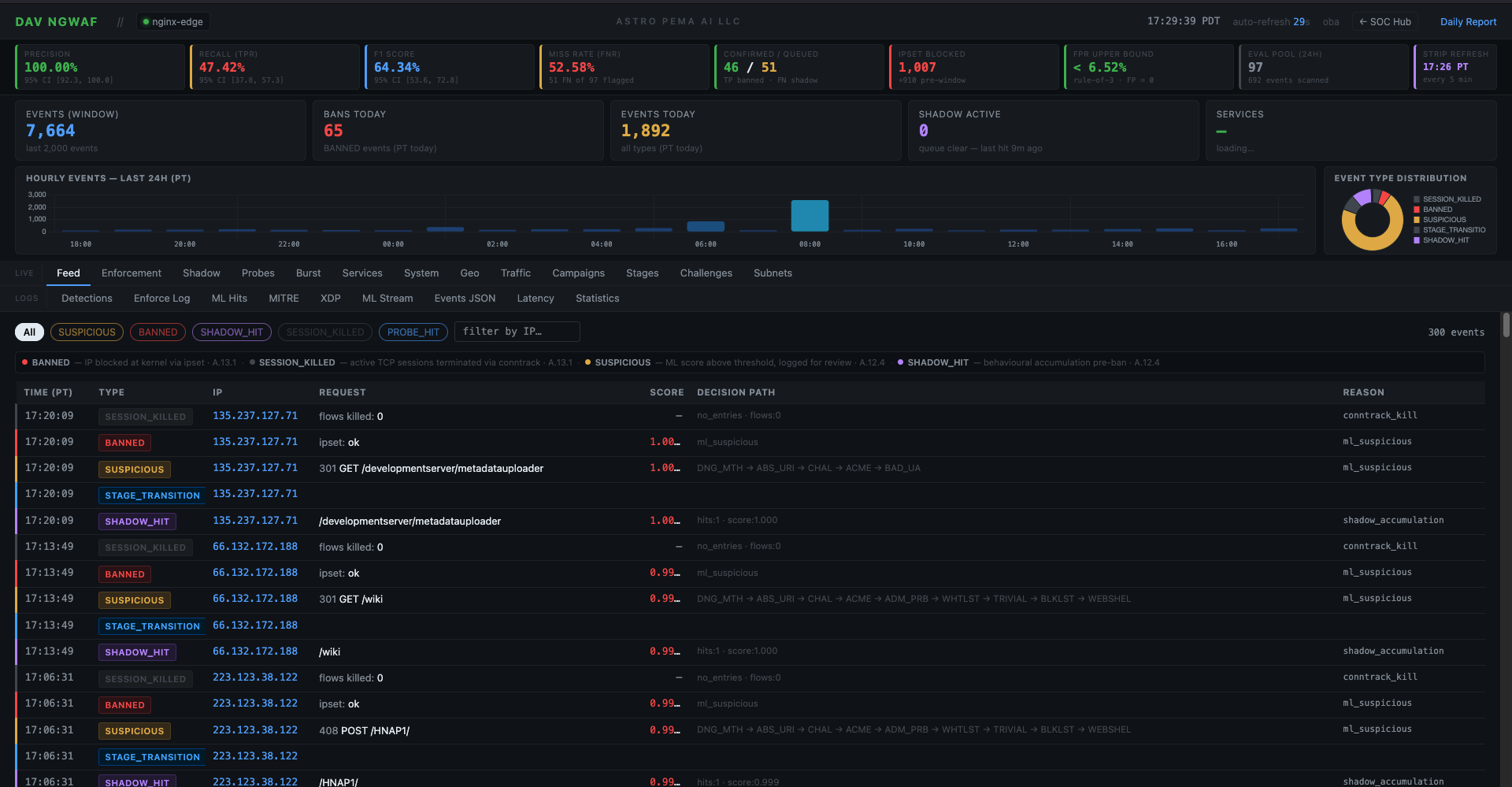

SOC Dashboard — Live View
